Description
Product Description

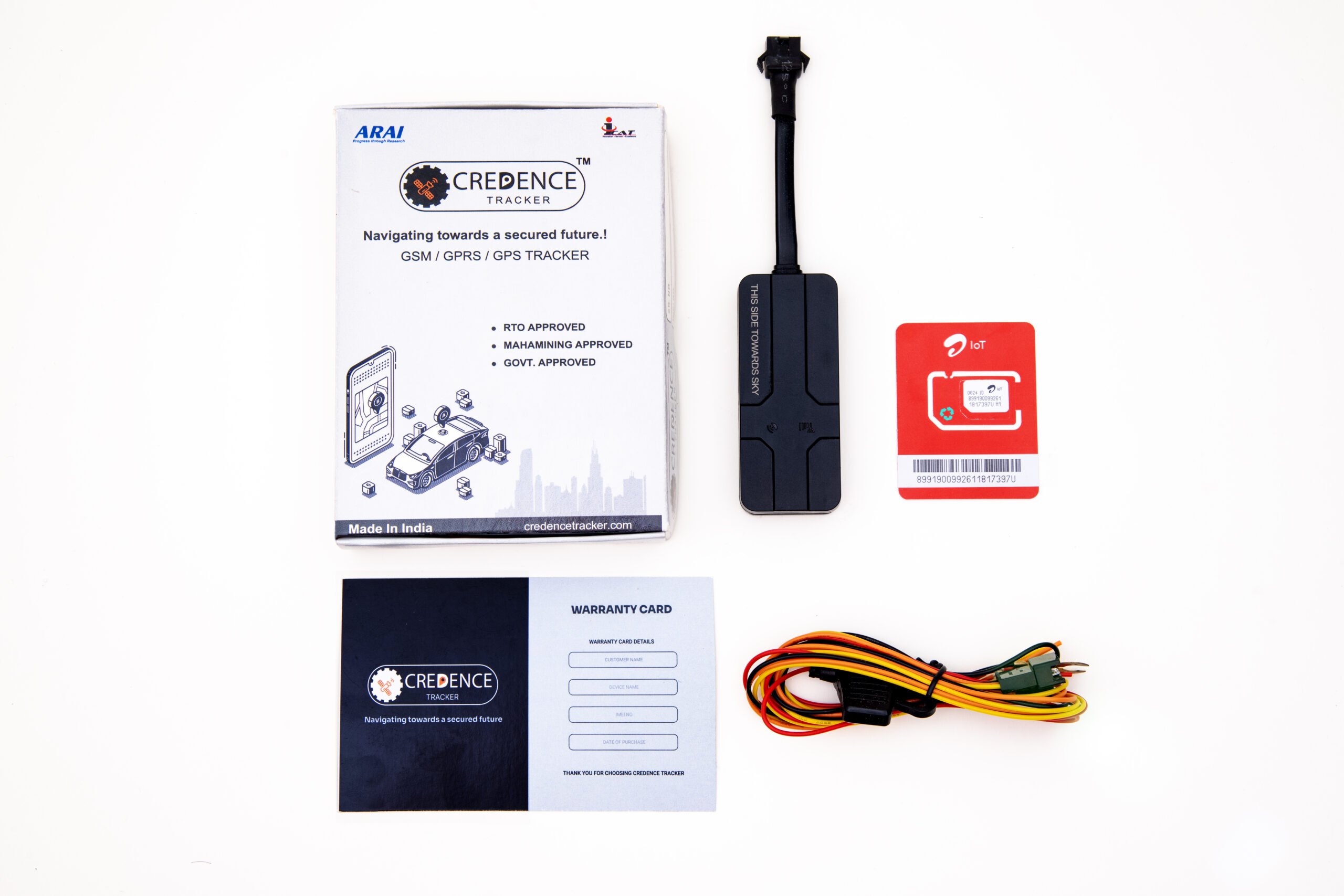

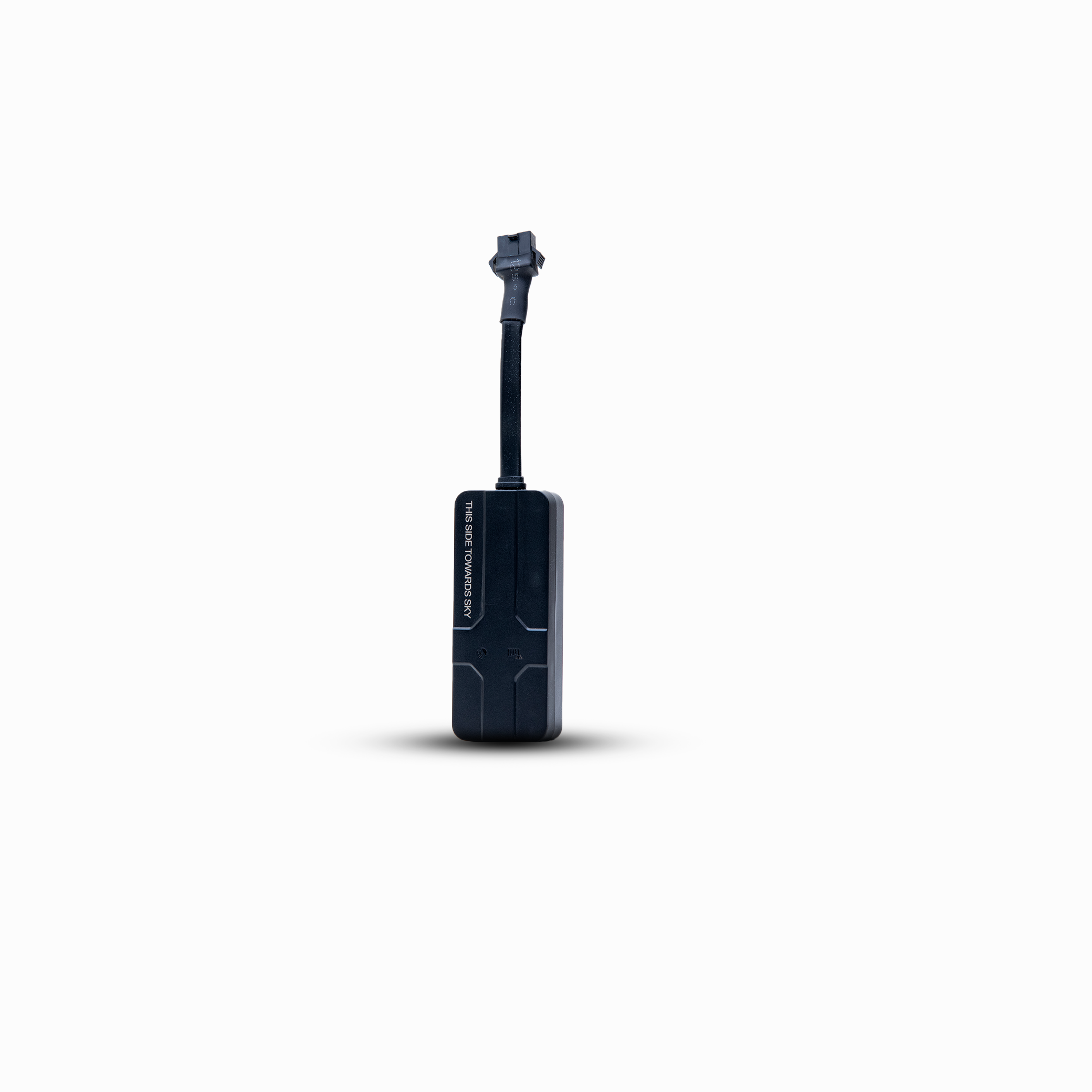

V5 GPS tracker is a compact and efficient device designed for reliable location tracking in real time. Utilizing 2G connectivity, it offers essential tracking features suitable for personal vehicles and assets. With its user-friendly interface and simple installation, the V5 provides accurate positioning, geofencing capabilities, and historical logs for no network area. Ideal for those seeking an economical solution for monitoring their belongings, the V5 GPS tracker ensures you stay connected and informed at all times.
- 10-second real-time updates
- Multi-GNSS precision
- Compact size
Product Specification
Powerful capabilities that go beyond basic location tracking
| Real-Time Tracking | |
|---|---|
| Location Updates | Configurable from 10 seconds to 60 minutes (10s recommended for real-time tracking) |
| External Voltage Protection | external voltage protection |
| Smart Geofencing | Create 1 circle geofences with entry/exit alerts and dwell time notifications |
| Vehicle Intelligence | |
| Driver Behavior Analysis | Monitor harsh braking, rapid acceleration, and excessive speeding |
| Mobile Integration | |
| Live Map View | Monitor all assets on an interactive map with customizable layers |
| Advanced Reporting | Generate customizable reports on vehicle usage, Km., and driver performance |
| Instant Alerts | Receive Alerts for important events |
Technical Specifications
Engineering excellence in every detail
GPS Specifications
| Positioning System | GPS |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Positioning accuracy | <2.5m CEP |
| Tracking sensitivity | -165 dBm |
| Acquisition | -148dBm |
| TTFF (open-sky) | Avg. hot start <1sec | Avg. cold start <35sec |
Network Specifications
| Network Type | 2G |
|---|---|
| Supported Bands | 850/900/1800/1900 MHz |
| Data Transmission | TCP |
| Max Output | GSM850/GSM900:33±3dBm |
| Max Frequency Error | ±0.1ppm |
| SIM Card | Standard Nano SIM |
| LED Indication | Green (Cellular), Blue (GPS) |
Physical Specifications
| Dimensions | 71.9*30.2*12.9mm |
|---|---|
| Weight | 29g |
| Color | Black |
| IP Rating | IP54 Tested in internal lab |
Power Specifications
| Operating Voltage | 9V – 90V DC |
|---|---|
| Standby Current | < 7mA |
| Backup Battery | Built-in 60Mah/3.7V Li-Polymer |
| Battery Life | 30 Minute |
| Operating Temperature | DC -20°C to 70°C |
| Storage Temperature | –30°C to +85°C |
Additional Features
| Server Type | Dual IP Support (Primary1 + Primary2) |
|---|---|
| Data Storage | 32MB Flash Memory |
| Motion Sensor | Accelerometer |
| Alarm Types | Vibration, Over-Speeding, Geo-fence, Power Cut, Ignition On/Off, Low battery, Moving, Driving Behavior Analysis |
| Offline Memory Logs | 1000 location packet |
| Ignition Detection | Wire & motion |
| Chipset | RDA “RDA8955L” |
