Product Description

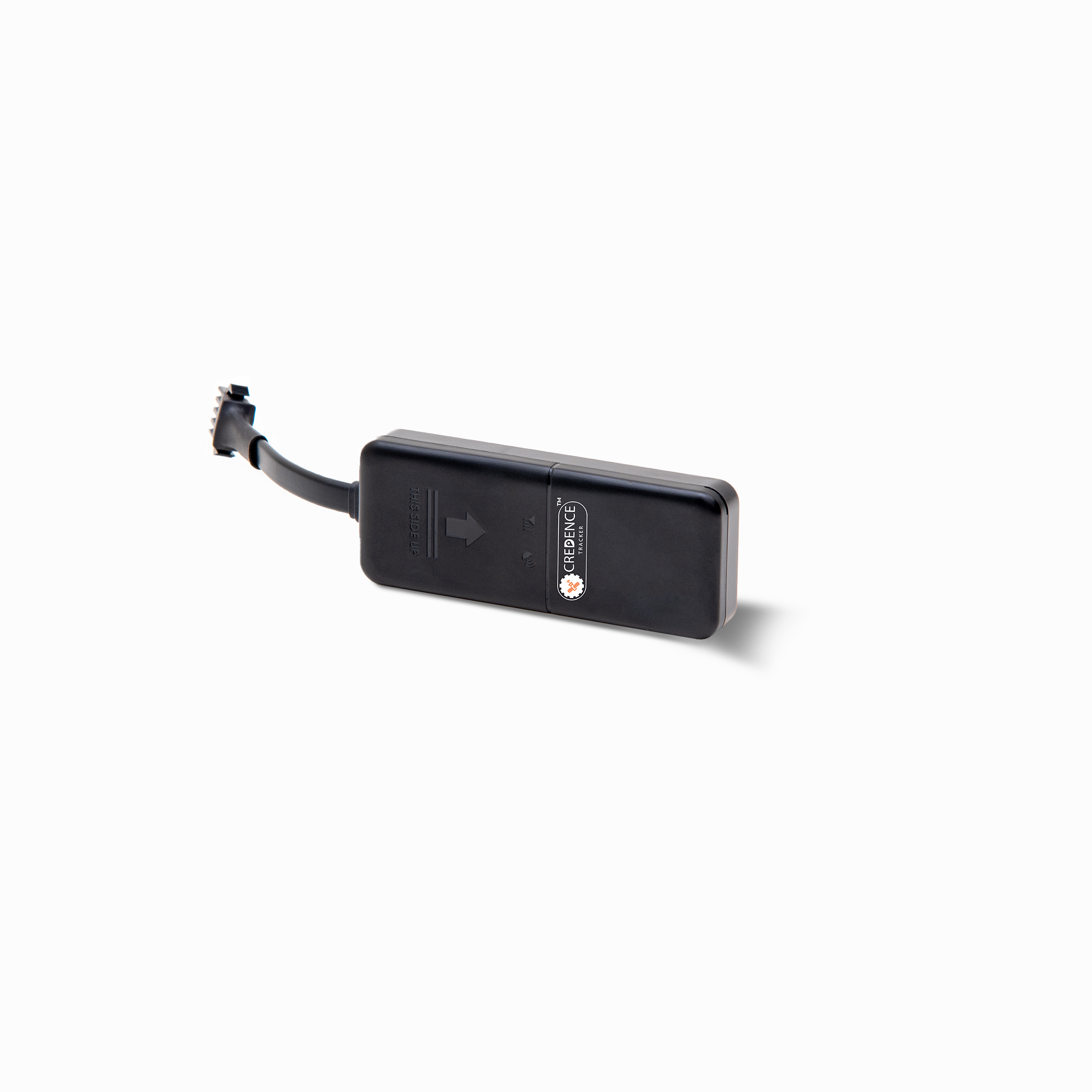

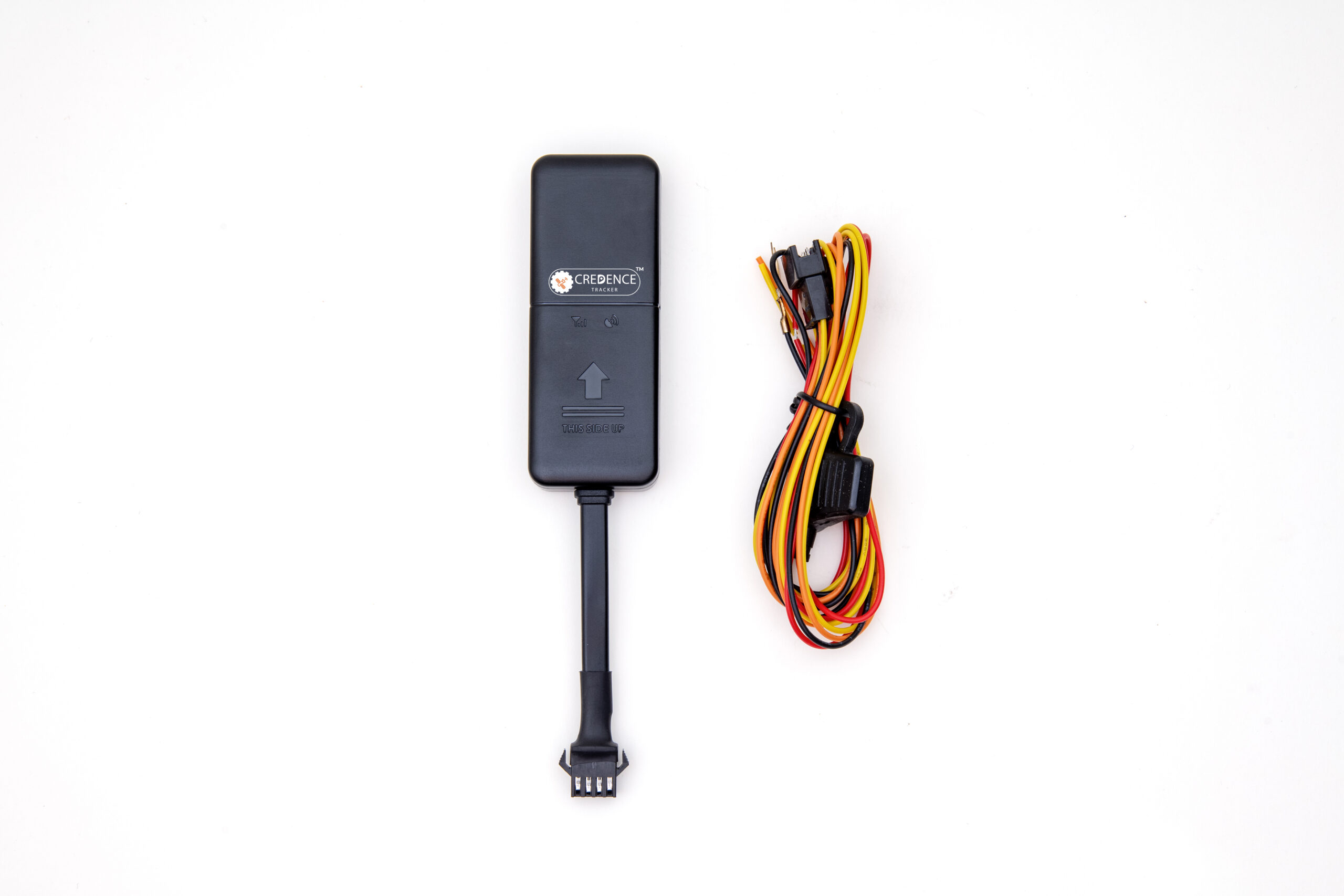

The VL149 is a state-of-the-art GPS tracker designed for seamless real-time location tracking. Equipped with 4G LTE connectivity, it ensures reliable and swift data transmission, making it ideal for monitoring vehicles and assets. This compact device offers features such as geofencing, historical data storage, and customizable alerts, ensuring you stay informed and in control. Whether for personal use or fleet management, the VL149 provides peace of mind with its robust performance and easy installation.
- 10-second real-time updates
- Multi-GNSS precision
- Compact size
Product Specification
Advanced Tracking Features
Powerful capabilities that go beyond basic location tracking
| Real-Time Tracking | |
|---|---|
| Location Updates | Configurable from 10 seconds to 60 minutes (10s recommended for real-time tracking) |
| External Voltage Protection | external voltage protection |
| Smart Geofencing | Create 1 circle geofences with entry/exit alerts and dwell time notifications |
| Vehicle Intelligence | |
| Driver Behavior Analysis | Monitor harsh braking, rapid acceleration, and excessive speeding |
| Mobile Integration | |
| Live Map View | Monitor all assets on an interactive map with customizable layers |
| Advanced Reporting | Generate customizable reports on vehicle usage, Km., and driver performance |
| Instant Alerts | Receive Alert for important events |
Technical Specifications
Engineering excellence in every detail
GPS Specifications
| Positioning System | GPS |
|---|---|
| Frequency | L1/B1 |
| GPS channel | 66 |
| Positioning accuracy | <2.5m CEP |
| Tracking sensitivity | -165 dBm |
| Acquisition | -148dBm |
| TTFF (open-sky) | Avg. hot start <1sec | Avg. cold start <32sec |
Network Specifications
| Network Type | 4G LTE Cat.1 |
|---|---|
| Supported Bands | LTE-FDD: B1/B3/B5/B8 | LTE-TDD: B34/B38/39/B40/B41 |
| Data Transmission | TCP |
| Max Frequency Error | ±0.1ppm |
| SIM Card | Standard Nano SIM |
| LED Indication | Green (Cellular), Blue (GPS) |
Physical Specifications
| Dimensions | 80*31*31mm |
|---|---|
| Weight | 28g |
| Color | Black |
| IP Rating | IP54 Tested in internal lab |
Power Specifications
| Operating Voltage | 9V – 90V DC |
|---|---|
| Standby Current | < 7mA |
| Backup Battery | Built-in 60Mah/3.7V Li-Polymer |
| Battery Life | 30 Minute |
| Operating Temperature | DC -20°C to 70°C |
| Storage Temperature | –30°C to +85°C |
| Power Supply | Power cable: B+/ACC/GND |
